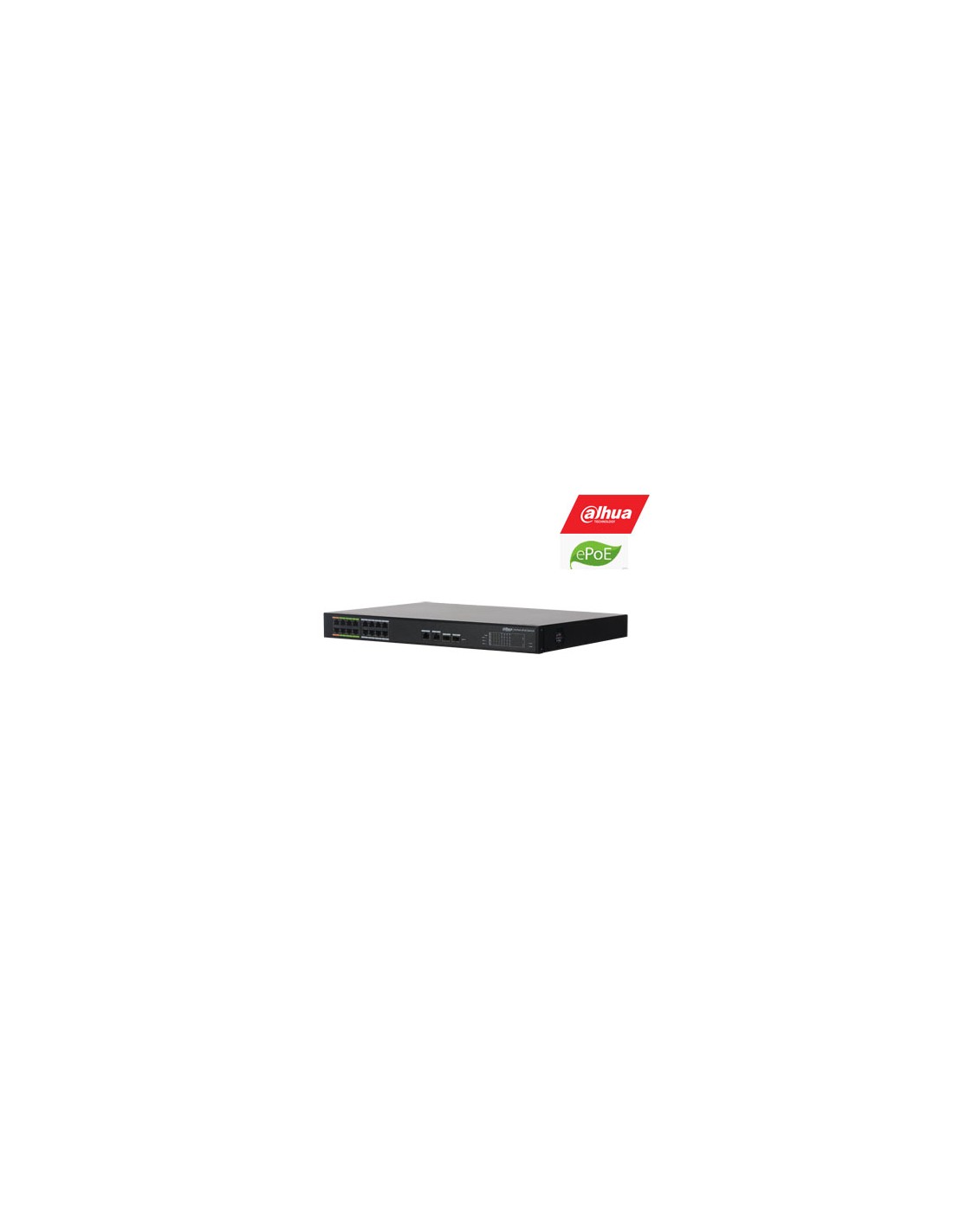

ePoE šakotuvas 100Mbps 16portu+2G uplink + 2SFP, ePoE 8 portai, ePoE iki 800m, Hi-PoE

ePoE šakotuvas 100Mbps 16portu+2G uplink + 2SFP, ePoE 8 portai, ePoE iki 800m, Hi-PoE

Prekės ID: 18622
1 - 3 d.d.
505,78 €
Pristatymas 1-2 d.d

ePoE iki 800m. veikia tik sukamerom kurios palaiko ePoE. Product Overview: DH-LR2218-16ET-240 is a 16-Port web managed ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. Dahua ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost. Features: • Supports long distance PoE transmission up to 800m with ePoE technology of Dahua • Layer-two web managed ePoE switch • Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10 • Port 1-8 support both twisted-pair transmission and coaxial cable transmission • Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS • Support PoE management, Green PoE, Legacy Support • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards Technical Specifications: • Model DH-LR2218-16ET-240 Ethernet Port • 2*10/100/1000 Base-T • 2*1000 Base-X (Combo ports) • 16*10/100 Base-T (PoE power supply) • PoE Power Consumption Port1 and port 2 support Hi-PoE 60W • Each power=30W, Total=240W • PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE • Switching Capacity 8.8Gbps • Packet Forwarding Rate 5.36Mpps • Packet Buffer Memory 2.75Mb • Application Humidity 10%~90% • Power AC100-240V, 50/60Hz • Lightning Protection Common Mode 4KV • Differential Mode 2KV • Working Temperature -10°C~55°C • Weight 3.12kg • Dimension(W×D×H) 440mm x300mm x44mm Transmission Performance: ePoE switch supply voltage 48V, CAT5E/CAT6, max. DC resistance < 10O/100m • Cable (m) 100, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 53, Working Mode IEEE/E100 • Cable (m) 200, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 47, Working Mode E100 • Cable (m) 300, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 32, Working Mode E100 • Cable (m) 400, Bandwidth 10, PoE Load Capacity(W) 23, Hi-PoE Load Capacity (W) 26, Working Mode E10 • Cable (m) 500, Bandwidth 10, PoE Load Capacity(W) 20, Hi-PoE Load Capacity (W) 20, Working Mode E10 • Cable (m) 800, Bandwidth 10, PoE Load Capacity(W) 13, Hi-PoE Load Capacity (W) 13, Working Mode E100 ePoE switch supply voltage 53V, CAT5E/CAT6, max. DC resistance < 10O/100m • Cable (m) 100, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 53, Working Mode IEEE/E100 • Cable (m) 200, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 48, Working Mode E100 • Cable (m) 300, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 30, Working Mode E100 • Cable (m) 400, Bandwidth 10, PoE Load Capacity(W) 20, Hi-PoE Load Capacity (W) 23, Working Mode E10 • Cable (m) 500, Bandwidth 10, PoE Load Capacity(W) 16 Hi-PoE Load Capacity (W) 26, Working Mode E10 • Cable (m) 800, Bandwidth 10, PoE Load Capacity(W) 8, Hi-PoE Load Capacity (W) 8, Working Mode E10
ER-2218-16ET240
5 Prekės
